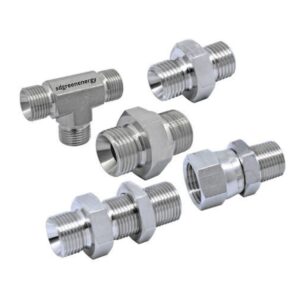

BSPP 60o Cone Fittings
SD Green Energy Pvt ltd BSPP 60o Cone design Fittings with BSP (Parallel) thread are generally used with Hose and Tubing connections in Hydraulic systems.
Features / Benefit :
- Available in Material SS316L.
- BSPP 60O Cone Fittings design according to BS5200.
- Straight Fittings are manufactured from Bar Stock.
- Shape Fittings are manufactured from Forged Body.
- The seat angle is 60O with BSP (Parallel) thread.
- Precisely manufactured to ensure perfect seal by Metal to Metal line of contact.
Product Range & Operating Parameters :
- Pressure Rating : UPTO 3000 PSIG (206 Bar) at CWP
- End Connections – Fractional : 1/8″ to 1” BSPT / NPT Threads
Applications :
- Hydraulic
- Pneumatic, etc.
BSPP 60o Cone Fittings are also known as :
Hose Fittings and Adapters, Hose Fittings to BS5200, etc.
